Product Name: M2, M3  Film Composite

Insulation grade: F  grade

Thickness: 0.4-1.2mm

Width: 1000mm and cut tape

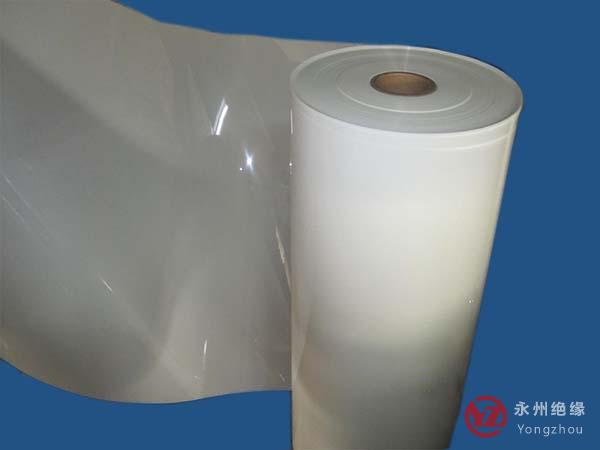

Product introduction:PET composite film is a multi-layer semi-soft composite material, which is made of two or more layers of polyester film coated with F-grade polyurethane adhesive.

Product characteristics:Polyester film composite material has excellent dielectric properties, good heat resistance, low water absorption and good impact properties. Its advantage is that it can be made into various geometric shapes of insulating cylinders, which greatly improves the electrical properties of glass cloth-based insulating cylinders.

Purpose:It is suitable for the insulation of various motors and transformers.
