Structure

The polyimide PSA tape is made by coating the silicone or acrylic adhesive on the surface of treated polyimide film.

Usage

The tape is of excellent temperature resist properties, ranging from -73 °C to 268°C. It is widely used in high temperature shielding such as the golden finger protection during PCB pass through the solder oven, surface protection, electrical insulating, platting mask, etc. There is no residual adhesive when the tape is peeled off after use.

Product Series

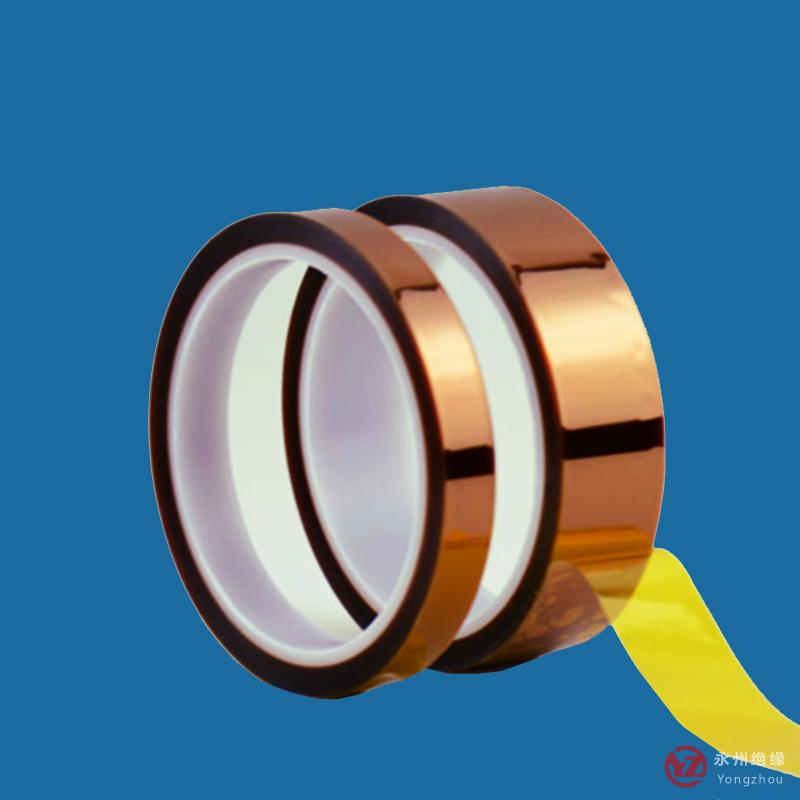

---Normal Polyimide tape (silicone or acrylic adhesion)

---Double side Polyimide tape

---Polyimide tape with liner

---ESD Tape (anti-static tape)

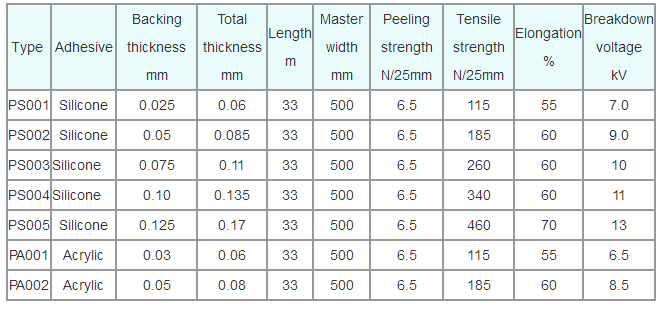

Features

Package & Supply

Packing: in rolls packed with shrinkable plastic film. Then in paper cartons.

Standard length: 33m

Width: from 7mm to 500mm
